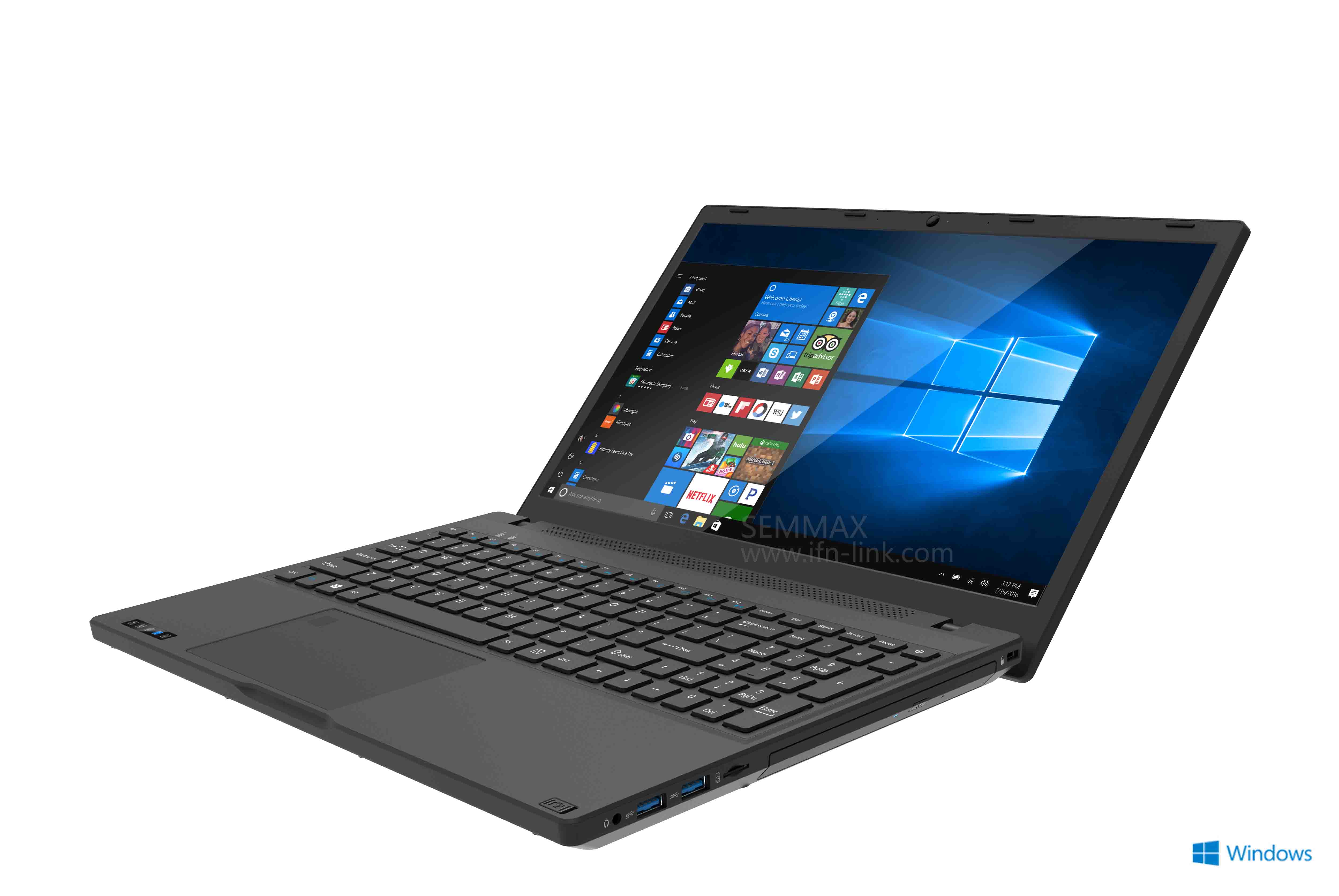

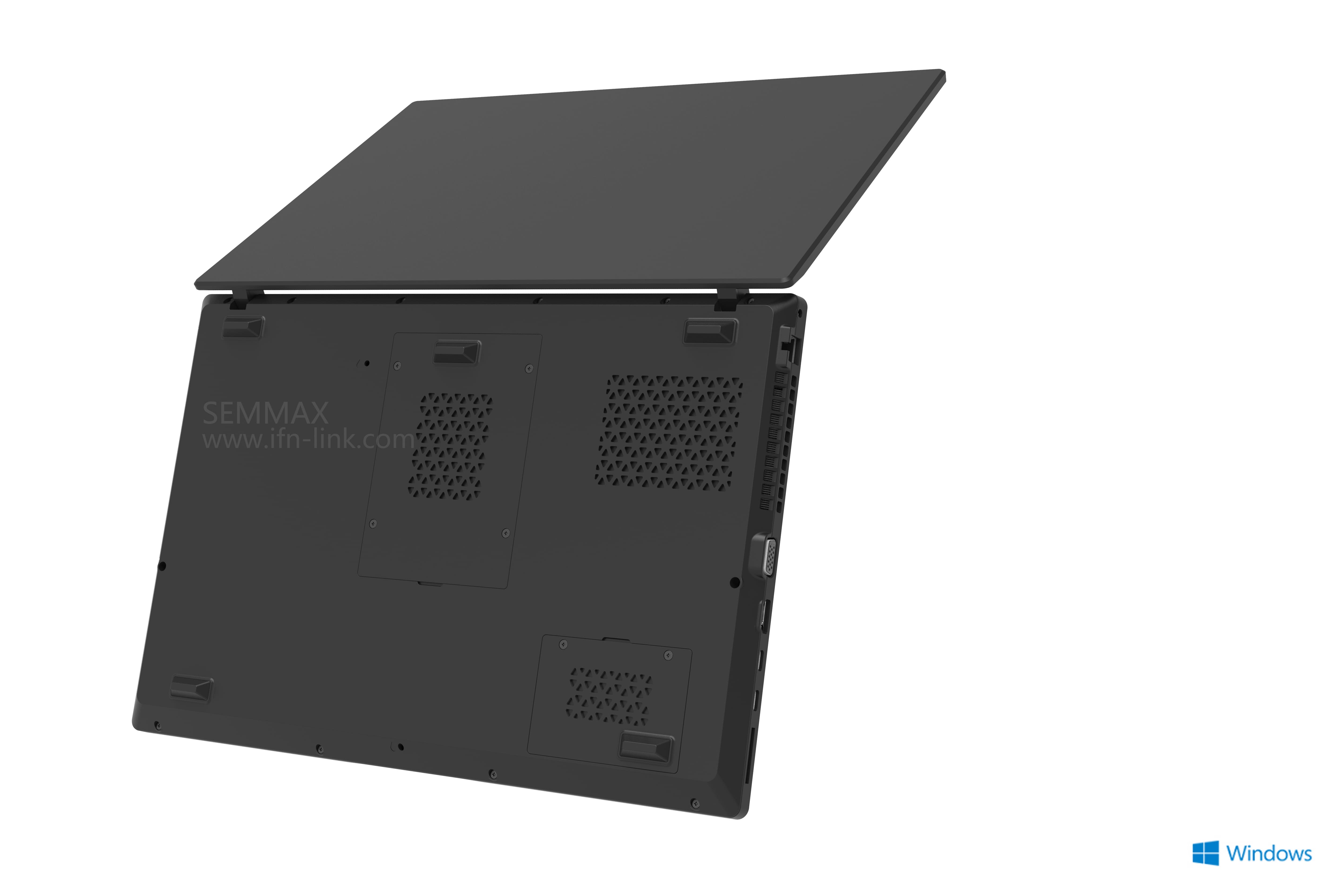

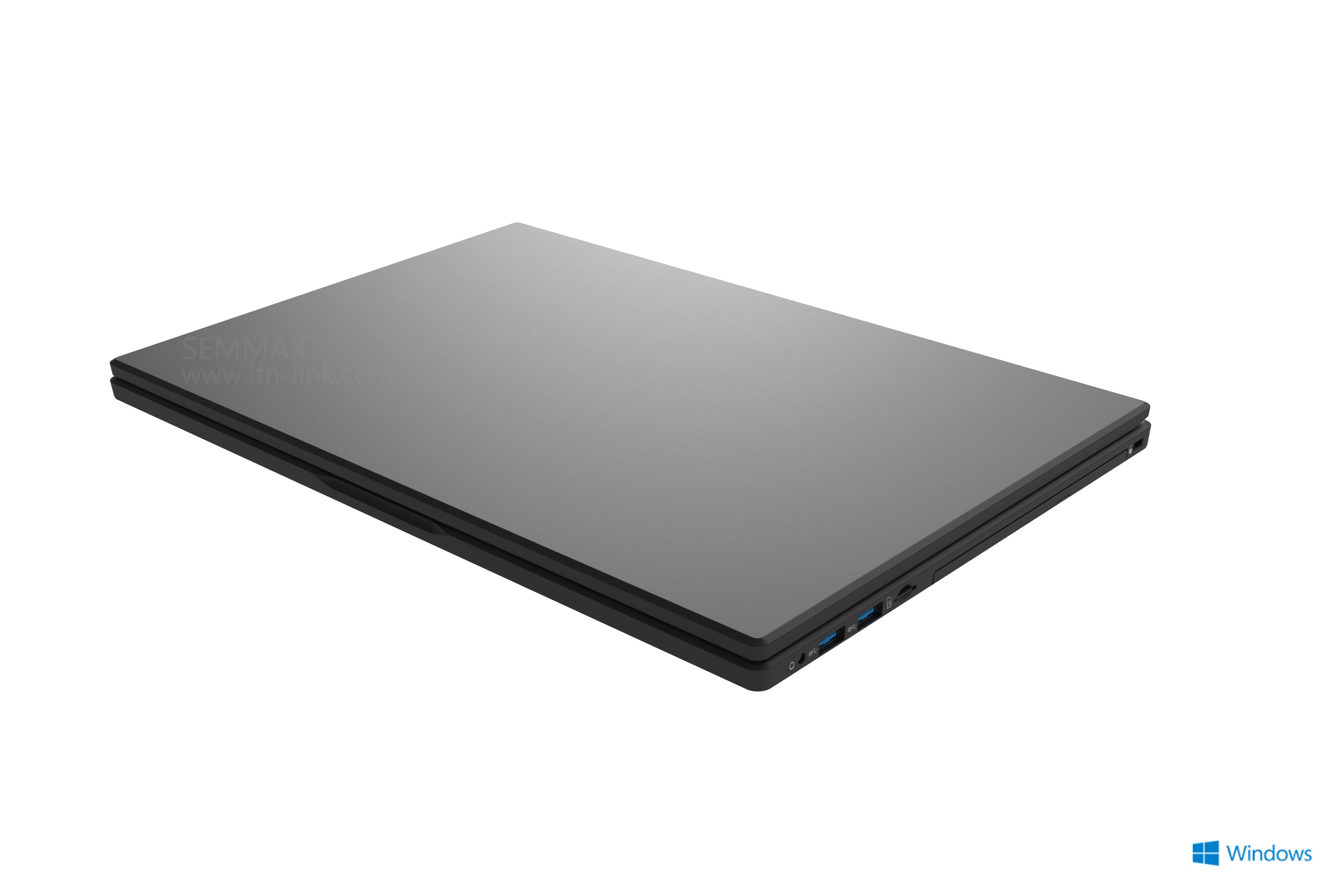

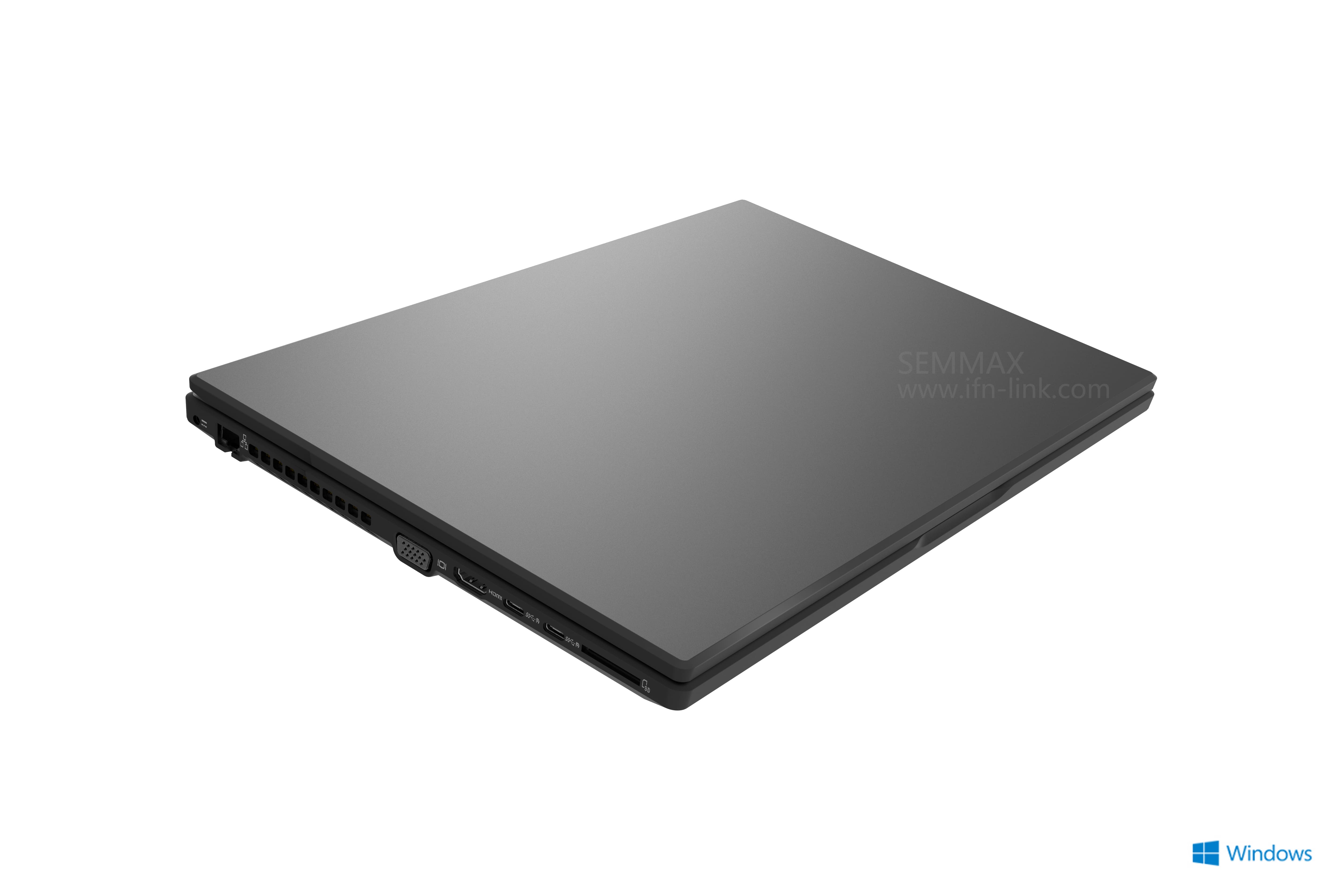

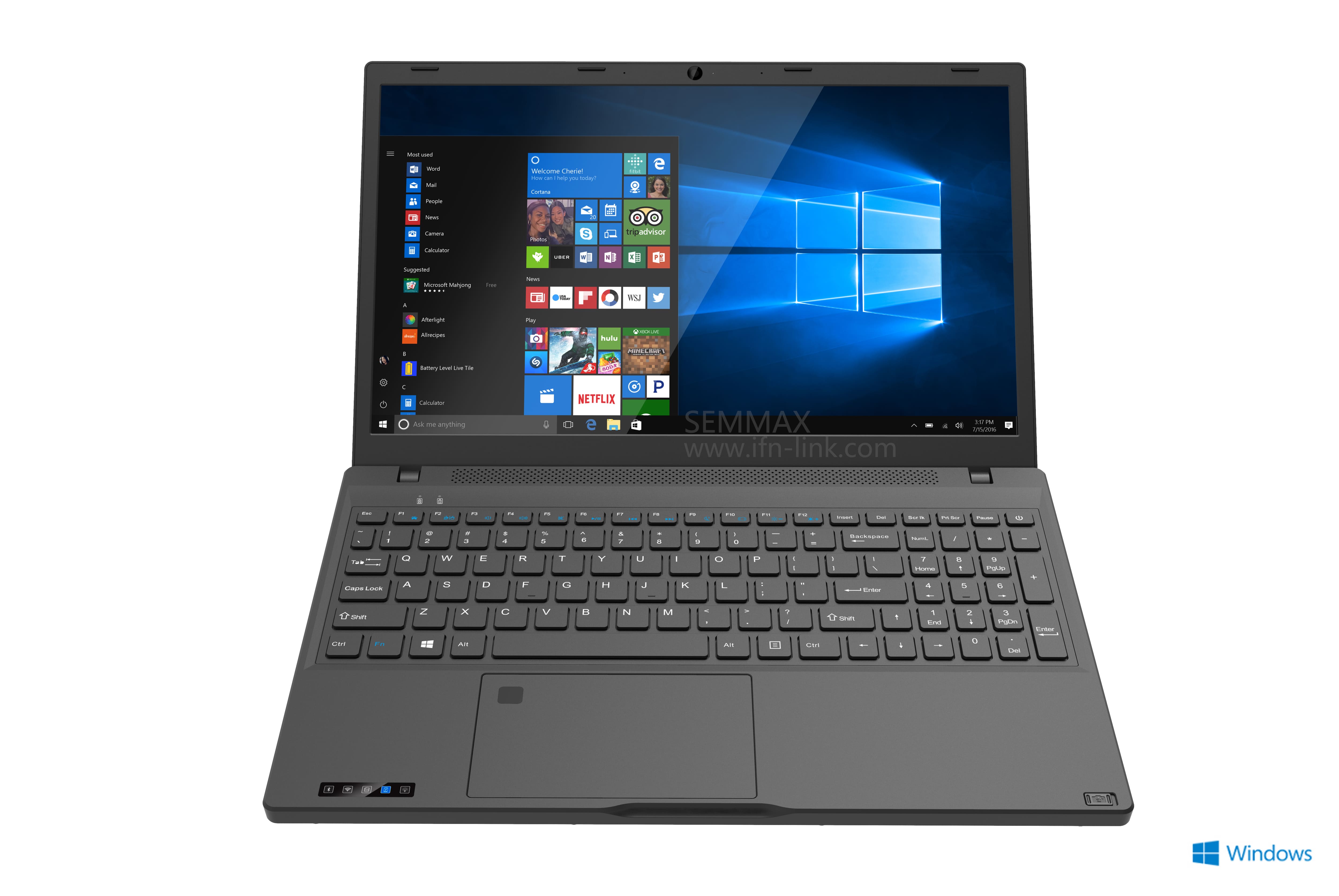

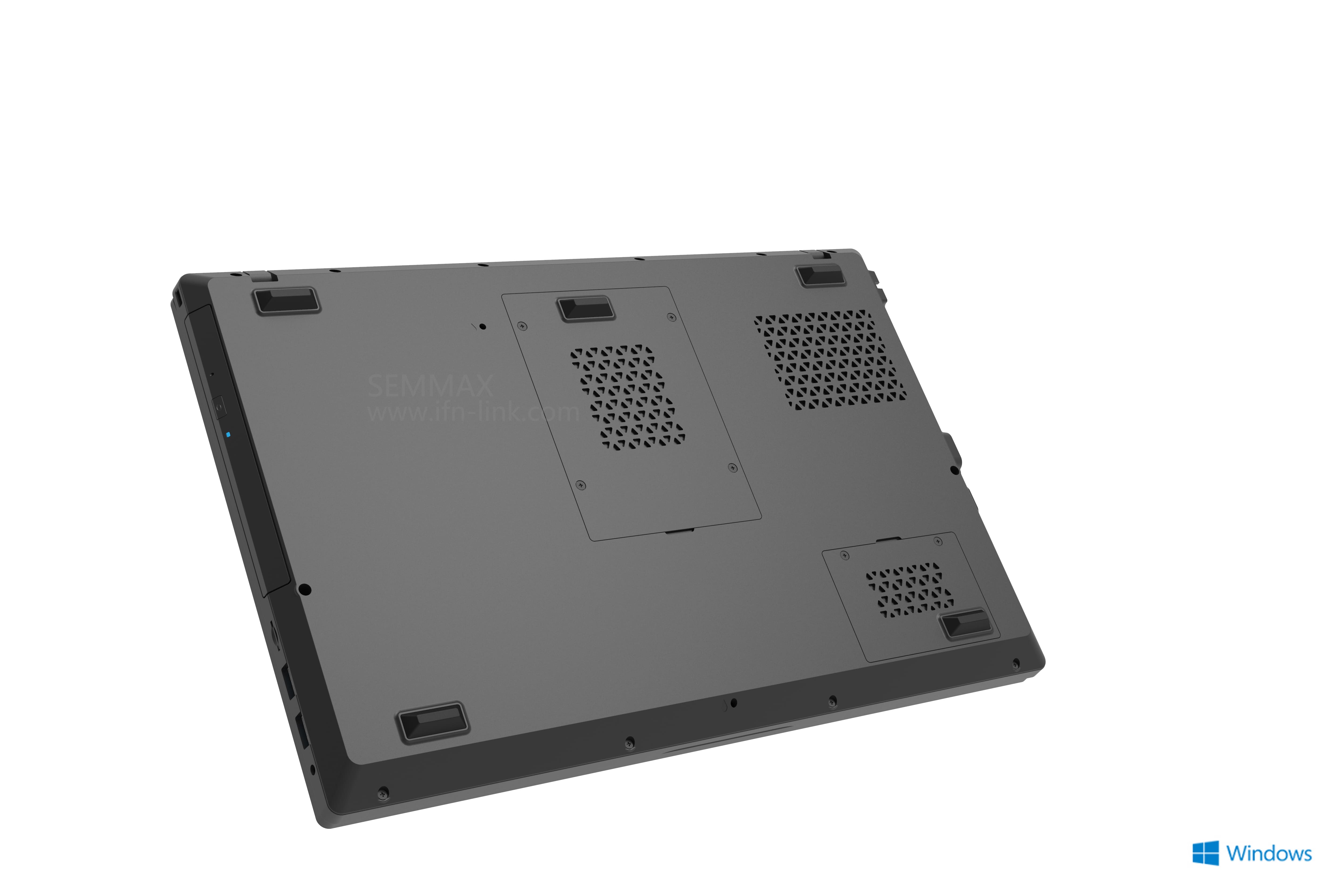

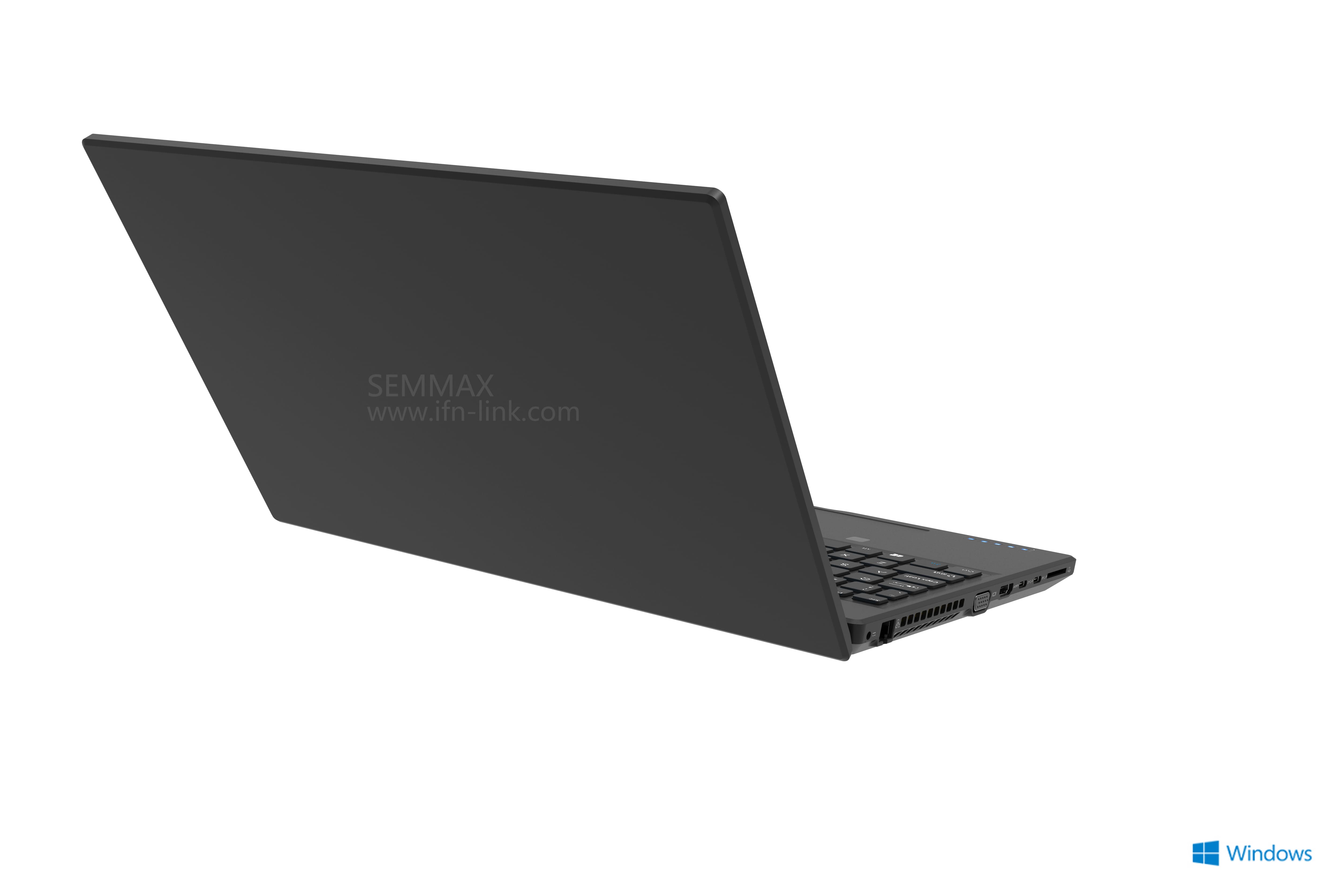

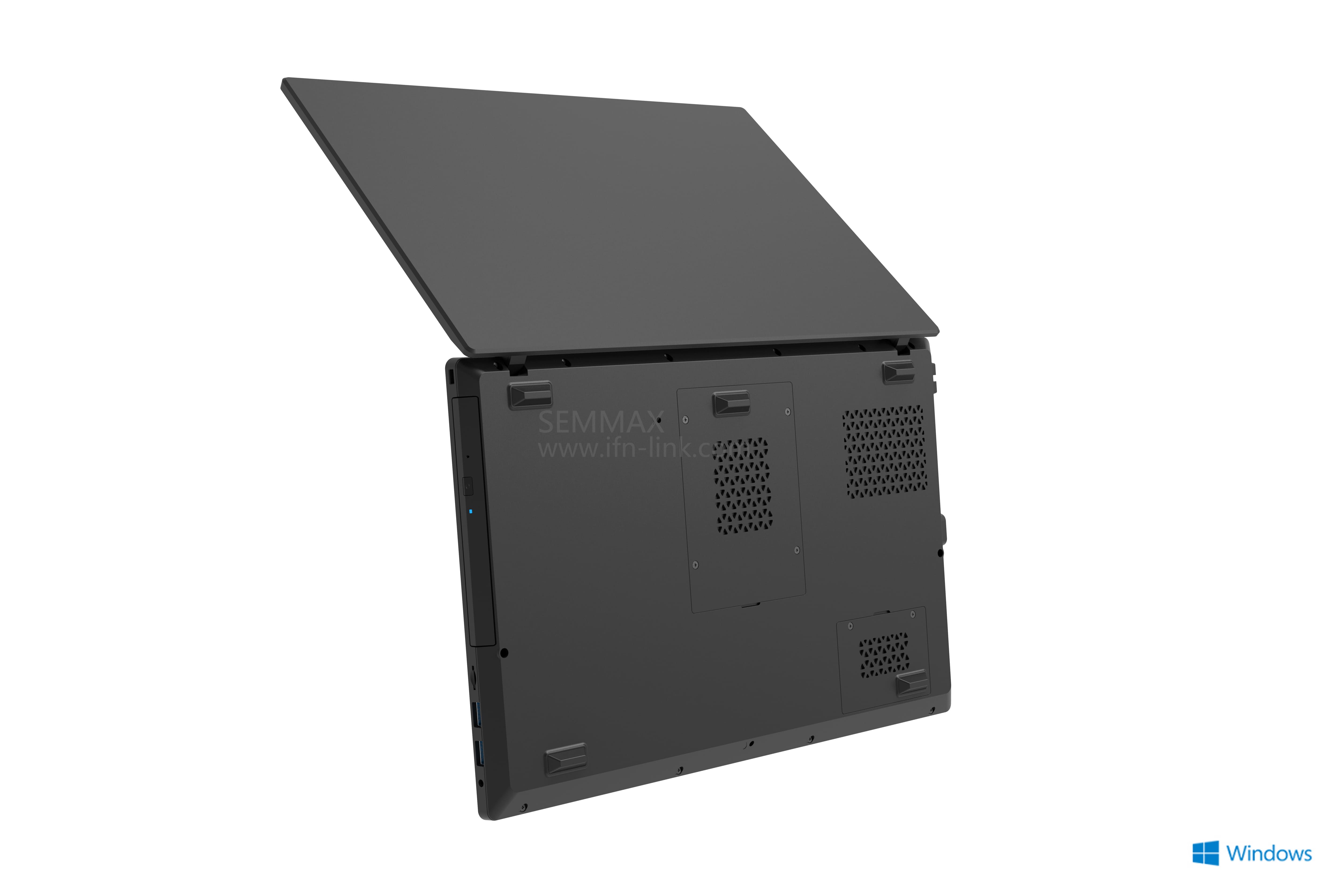

15.6 inch 11th Generation Intel® Core™-Tiger Lake
Model: C156EP-T11HDL
CPU:i7-1165G7 4 cores and 8 threads; speed 1.2-4.7 GHz
LPDDR/DDR:Sodimm: DDR4 Speed 3200Mzh,Support 4GB-32GB
WIFI:802.11ac, 2x2 ,AC9560
BT:5.1
RJ45:Support
Eearphone:3.5 interface American standard
DC/TEPY:DC 3.5
Battery:5000mAh/11.4V/57Wh
LCD:15.6” IPS 1920 x 1080 FHD
Adapter:19V,3.42A
Camera:2M FF W/white LED (30FPS supportive)
Features
Tech-Spec
|
SOC
|
Intel
Tiger Lake
|
11th Generation Intel® Core™ i7 Processors
i7-1165G7 4 cores and 8 threads; speed 1.2-4.7 GHz
11th Generation Intel® Core™ i5 Processors
i5-1135G7 4 cores and 8 threads; speed 0.9-4.2 GHz
11th Generation Intel® Core™ i3 Processors i3-1115G4 2 cores and 4 threads; speed 1.7-4.1 GHz
7505 2 cores and 4 threads; speed 2-3.5 GHz Intel® Celeron® Processor 6000 Series 6305 2 cores and 2 threads; speed 1.8 GHz
|
|
Memory
|
DDR4 Sodimm* 2
|
·Sodimm: DDR4 Speed 3200Mzh
·Sodimm* 2
·Support 4GB-32GB
|
|
Storage
|
SSD
|
·Support 1xSSD 128GB->1TB
·Support SATA or PCIE NVMe (M.2 2280) When install ODD ,SSD support PCle only (interface limit)
|
|
|
HDD
|
·Support 1xHDD 512GB->1TB
Ø Support SATA 2.5inch HDD/SSD
|
|
|
ODD |
·Support 1x Standard ODD Bay(with outer plastic cover)
|
|
LCD
|
15.6 IPS
|
·15.6” IPS 1920 x 1080 FHD
·Brightness 250nits，contrastratio800(typ)
·eDP interface
|
|
Keyboard
|
Waterproof
|
·Integrated QWERTY keyboard w/ Hot key(Supportive Dedicated layout)
·101 US KEY K/B
·Multi-languages Supported
·Physical Chocolate KB
·Supportive backlight (KB with backlit cannot support waterproof)
|
|
Pointing Device
|
HIDI2C
|
·Click Pad with Left / Right Click and scrolling Bar.
·I2C interface
·Support Windows Precision Touchpad (PTP)
|
|
Wireless LAN
+ Bluetooth
|
1x1ac Combo
AC9461
|
·1 x M.2 Key-E 2230
·802.11ac 1x1 (5GHz/2.4GHz dual band support)
·Bluetooth 5.1
·M.2 2230 supported
|
|
|
2x2ac Combo
AC9560
<Optional>
|
·1 x M.2 Key-E 2230
·802.11ac, 2x2 (5GHz/2.4GHz dual band support)
·Bluetooth 5.1
·M.2 2230 supported
|
|
|
2x2ac Combo
AX200/Ax201
<Optional>
|
·1 x M.2 Key-E 2230
·802.11ac, 2x2 (5GHz/2.4GHz dual band support) ,WiFi 6
·Bluetooth 5.2
·M.2 2230 supported
|
|
LTE
<Optional> |
M.2 USB2.0
|
·LTE America version ro European version
·1*M.2 2242 Key-B slot for LTE, USB2.0
·Supports AGPS
|
|
Battery
|
Polymer
|
·Polymer 3 cell 3S1P
·Li-Polymer Battery, soft pack, removable
·5000mAh/11.4V/57Wh
|
|
Adapter
|
65W
|
·DC Output: 19V, 3.42A 65W
·DC in plug
·Automatics Voltage adjustment between 100 and 240VAC
·Input Frequency 50/60Hz
·Surge protection
|
|
I/O Port
|
1 x DC-in(3.5Ø)
2 x USB 3.1 gen1 Type-A
2 x Thunderbolt4 (USB3.1 gen2 Data/Charge/DP)
1 x combo audio jack for headphone/microphone
1 x HDMI output port (with HDCP),Type-A 2.0
1 x SD card slot (SD/MMC Full size 24mm card slot)
1 x Micro SIM slot
1 x RJ45 1000M
1 x VGA
1 x Kensington Lock
|
|
|
System Status
Indication
|
·In the left of touchpad, from left to right:
·1. Bluetooth: Enabled(Blue)
·2. Wireless: Enabled(Blue)
·3. SSD: Active(Blue)
·4. Charging: Charging(Red)/Full(Blue)
·5. Power: Enabled(Blue)
·6. Digital keyboard Enabled(Blue)
·7. Keyboard is upper case/lower case Enabled(Blue)
|
|
|
Speaker
|
·Build-in 2 stereo speakers
·Speaker: 1.5W
|
|
|
Microphone
|
·Default: 2 digital mic
·Support Windows 10 Cortana compliance.
·Digital MIC array
|
|
|
Camera
|
·Front Camera：2M FF W/white LED (30FPS supportive)
·With D-MIC*2
·USB 2.0 interface
·Resolution support 2M(4:3 format)still image and HD 720P(1280x720, 16：9) motion image
·Sliding on/off switch physically detaching Cam&Dmic power supplies
|
|
|
OS
|
· Windows10；Windows11；Linux
· WALK LOGO
|
|
|
Measurements
|
·Dimension:364.5*242.7*26.3mm
· Weight: 1.7-2.08KG （DVD+HDD）
|
|
|
Battery Life
|
· Battery Life :8 hour with Tablet Mark 2017(With SSD SKU)(TBD)
***Base on 15.6” LCD and defined brightness, Wi-Fi on, and camera disabled. Actual battery life may vary based on product settings, usage patterns and environmental conditions (e.g. with or w/o HDD)
|
|
|
Certification
|
EMC
|
·FCC/CE
|
|
|
RF
|
·CE (Wifi only for Europe，LTE by request)
·FCC(LTE by request)
|
|
|
Safety&
Environment
|
·CB
·UL (by request)
·WEEE(Declaration)
·RoHS (Declaration)
|
|
|
Design Ready
|
·Energy Star Compliance 8.0
·Erp 6
·CEC
|
|
Validation
|
dTPM2.0
<Optional>
|
·Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification
·SPI interface
|
|
|
Validation
|
·Water repellent on C cover 500CC, including Keyboard and touch pad
·Dropping 50cm TBD
·MIL-STS-810G
|
|
|
Fingerprint
<Optional>
|
·Touch pad
·SPI interface
·Windows Hello supported
|
|
|
iKES
<Optional> |
·Education Software
|
