14.1 inch Elite Notebook|Ice Lake / Tiger Lake| 14.1‘’| Metal/plastic | SODIMM + Embedded DDR4L| M.2

Model: C141WM-IxHSR

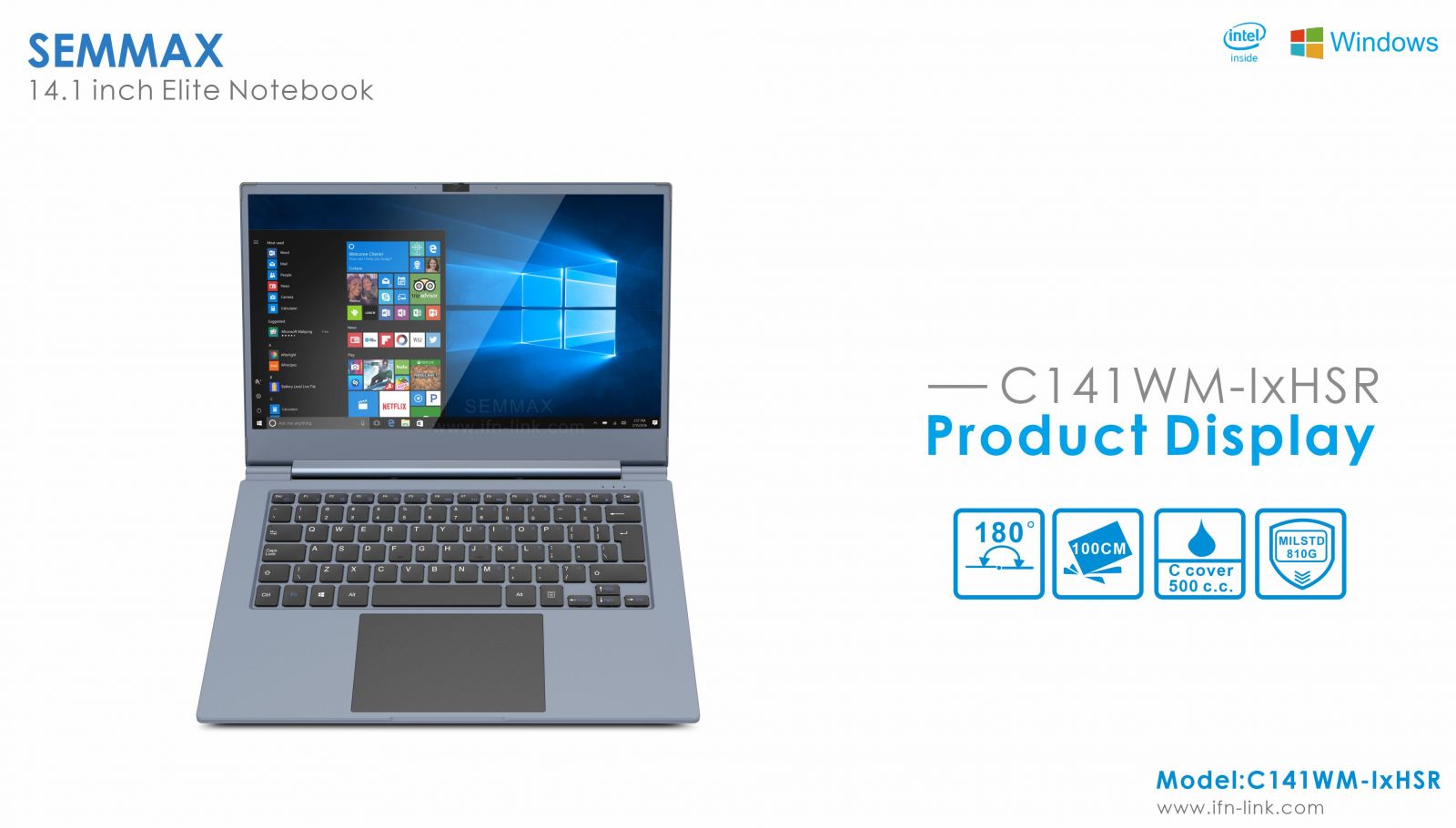

14.1 inch Elite Notebook

Ice Lake / Tiger Lake| 14.1‘’| Metal/plastic | SODIMM + Embedded DDR4L| M.2 SSD | LTE |RJ45 | 47.8W

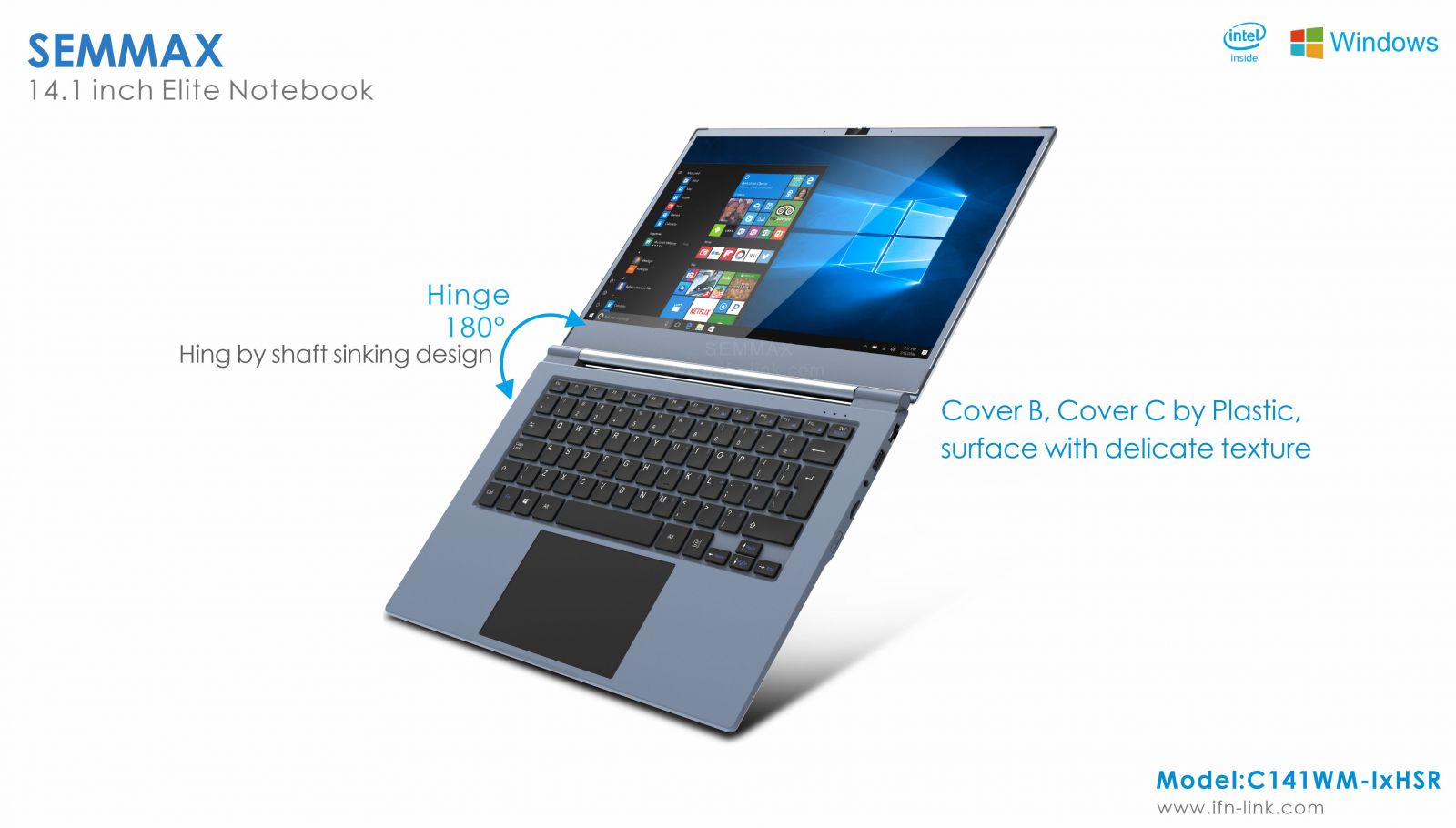

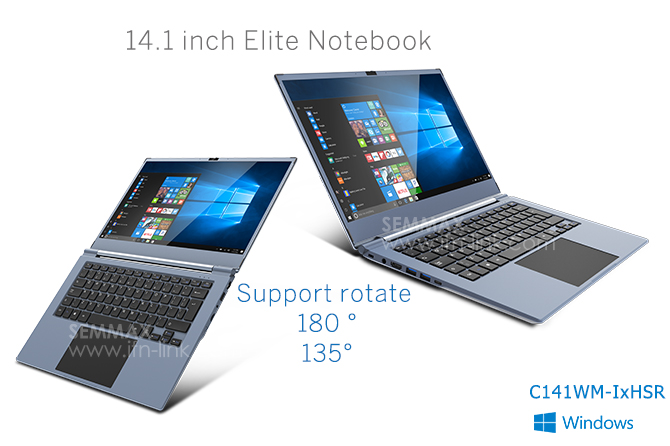

180°Hinge | 334*221.4*19.2mm |1.4kg (TBC)|

Ice Lake / Tiger Lake| 14.1‘’| Metal/plastic | SODIMM + Embedded DDR4L| M.2 SSD | LTE |RJ45 | 47.8W

180°Hinge | 334*221.4*19.2mm |1.4kg (TBC)|


Features

14.1 inch Elite Notebook

Ice Lake / Tiger Lake| 14.1‘’| Metal/plastic | SODIMM + Embedded DDR4L| M.2 SSD | LTE |RJ45 | 47.8W
180°Hinge | 334*221.4*19.2mm |1.4kg (TBC)|


Tech-Spec

 14.1 inch Elite Notebook

Ice Lake / Tiger Lake| 14.1‘’| Metal/plastic | SODIMM + Embedded DDR4L| M.2 SSD | LTE |RJ45 | 47.8W
180°Hinge | 334*221.4*19.2mm |1.4kg (TBC)|

SOC

AMD always Ryzen™

n   Ryzen™ 7 4800U, 8C/16T, 4.2/1.8GHz

n   Ryzen™ 7 4700U, 8C/8T, 4.1/2.0GHz

n   Ryzen™ 5 4600U, 6C/12T, 4.0/2.1GHz

n   Ryzen™ 5 4500U, 6C/6T, 4.0/2.3GHz

n   Ryzen™ 3 4300U, 4C/4T, 3.7/2.7GHz

n   GPU IGP Radeon™

n   TDP 15W

Memory

Sodimm* 2

n   Sodimm DDR4 2400Mhz-3200Mhz Speed

n   Support 4GB-32GB

Storage

SSD*2
<Optional>

n   Support  SSD 128-512GB

n   Support SATA or PCIE (M.2 2280)

Audio Codec

Realtek

ALC269Q-VX3-GR

n   Azalia integrated audio

n   2.1 channels sound outputs support

LAN Controller

<Optional>

Realtek

RTL8111H(S)-CG

n   Supports 10/100/1000 Mb/Sec

n   Support Wake on LAN

KBC

ITE

IT8987E/BX

n   ACPI 2.0b compliant

MicroSD     Card reader

Realtek

RTS5170-GR

n   Micro SD, SDXC, SDHC

n   USB2.0 interface

Hall Sensor

WH251E-3/TR



n   Micropower operation

n   Operation with magnetic field of either north or south pole

n   Chopper stabilized

n   Superior temperature stability

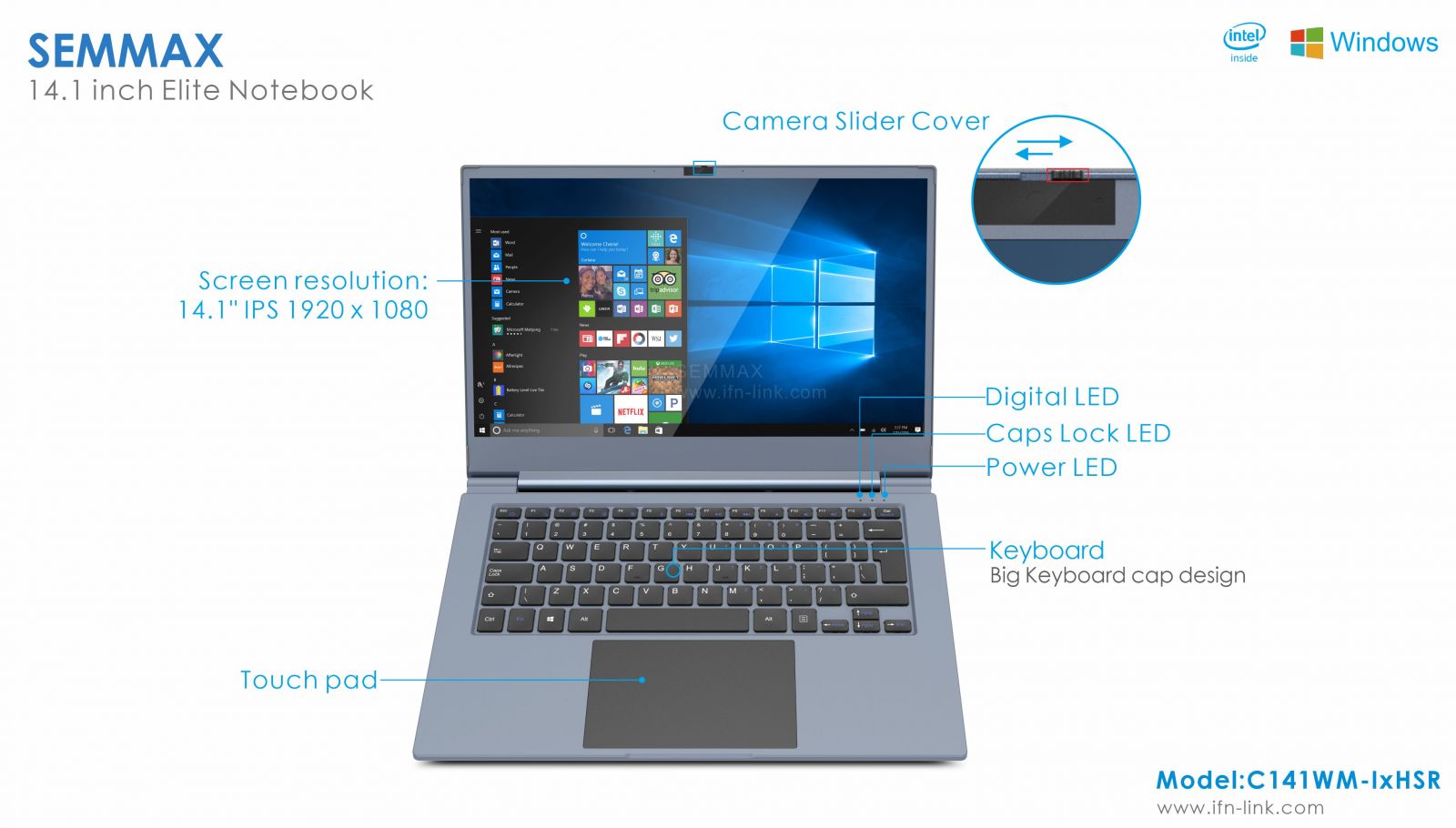

LCD

14.1 IPS

n   14.1” IPS 1920 x 1080

n   Brightness 250nitscontrastratio800(typ)

n   eDP interface

Keyboard



n   Integrated QWERTY keyboard w/ Hot key

n   ABTN2 83 UK KEY K/B

n   Multi-languages Supported

n   Physical Chocolate KB

Pointing Device

HIDI2C

n   Click Pad with Left / Right Click and scrolling Bar.

n   I2C interface

n   Support Windows Precision Touchpad (PTP)

Wireless LAN

Bluetooth

1x1ac Combo

AC9461

n   802.11ac 1x1 (5GHz/2.4GHz dual band support)

n   Bluetooth 5.1

n   M.2 2230 supported

2x2ac Combo

AC9560

<Optional>

n   802.11ac, 2x2 (5GHz/2.4GHz dual band support)

n   Bluetooth 5.1

n   M.2 2230 supported

2x2ac Combo

AX200/AX201

<Optional>

n   802.11ac, 2x2 (5GHz/2.4GHz dual band support) ,WiFi 6

n   Bluetooth 5.1

n   M.2 2230 supported

ALS

(Ambient Light-Sensor)

<Optional>

Capella

CM32181A3OP

n   LCD backlight luminance auto adjustment

n   Standard SM Bus protocol interface

Battery



n   Polymer 3 cell 3S1P.

n   Li-Polymer Battery, SW Gas Gauge IC,soft pack,non-removable.

n   3s1p/11.4V/70Wh.

Adapter

65W

n   DC Output: 19V/3.42A

n   DC in plug

n   Automatics Voltage adjustment between 100 and 240VAC

n   Input Frequency 50/60Hz

n   Surge protection

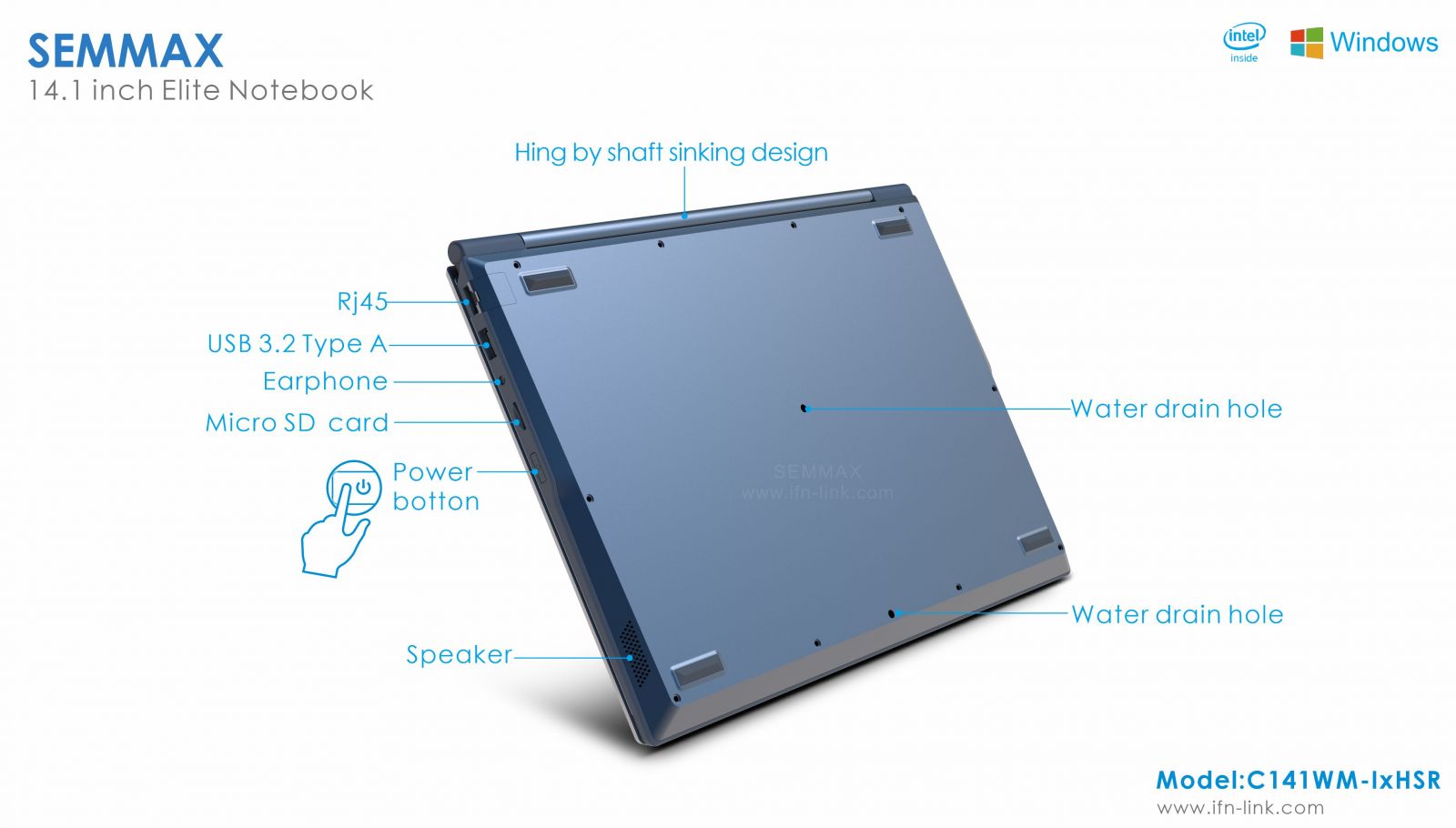

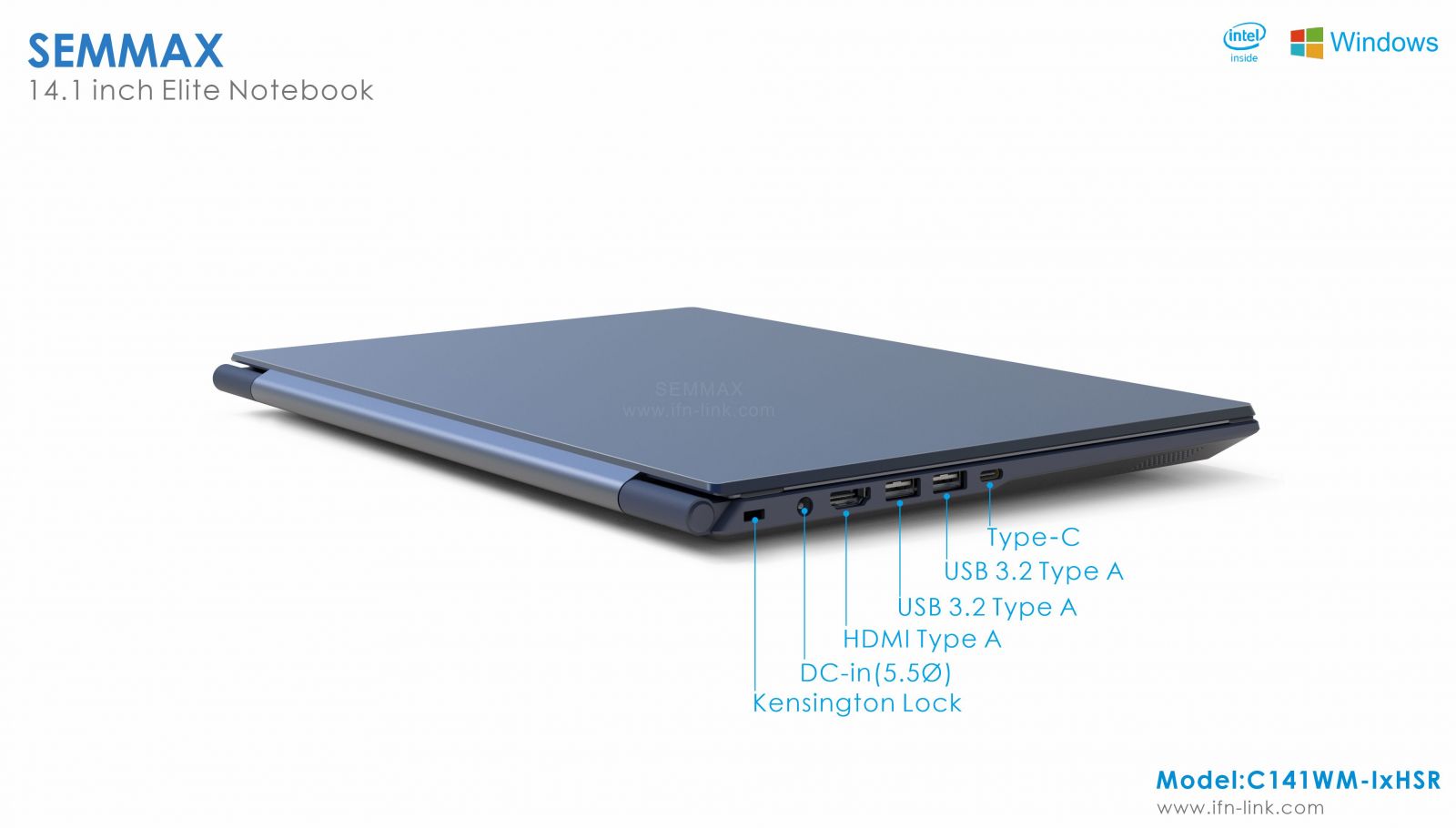

I/O Port

n   1 x DC-in(5.5Ø)

n   3 x USB 3.2 Gen1 Type-A

n   1 x USB 3.2 Gen2 Type-C (USB3.2, Data/PD/DP)

n   1 x combo audio jack for headphone/microphone

n   1 x HDMI Type-A 2.0

n   1 x Micro SD 2.0 card reader

n   1 x RJ45

n   1 x kensington lock

System Status

Indication

n   When power on: White LED always on, caps lock White LEDdigital White LED

n   Power charging indicator LED (Full: Green / Charging: Red)

n   Low battery (<20%): Red, blink every one second.

Power Button

n   On/ Off: Programmable Power Buttons to Windows

n   Press power button down for 1 second to enter suspend mode

n   Press power button down for 4 seconds to power off system

Speaker

n   Build-in 2 stereo speakers

n   Speaker: 2W , 4Ω

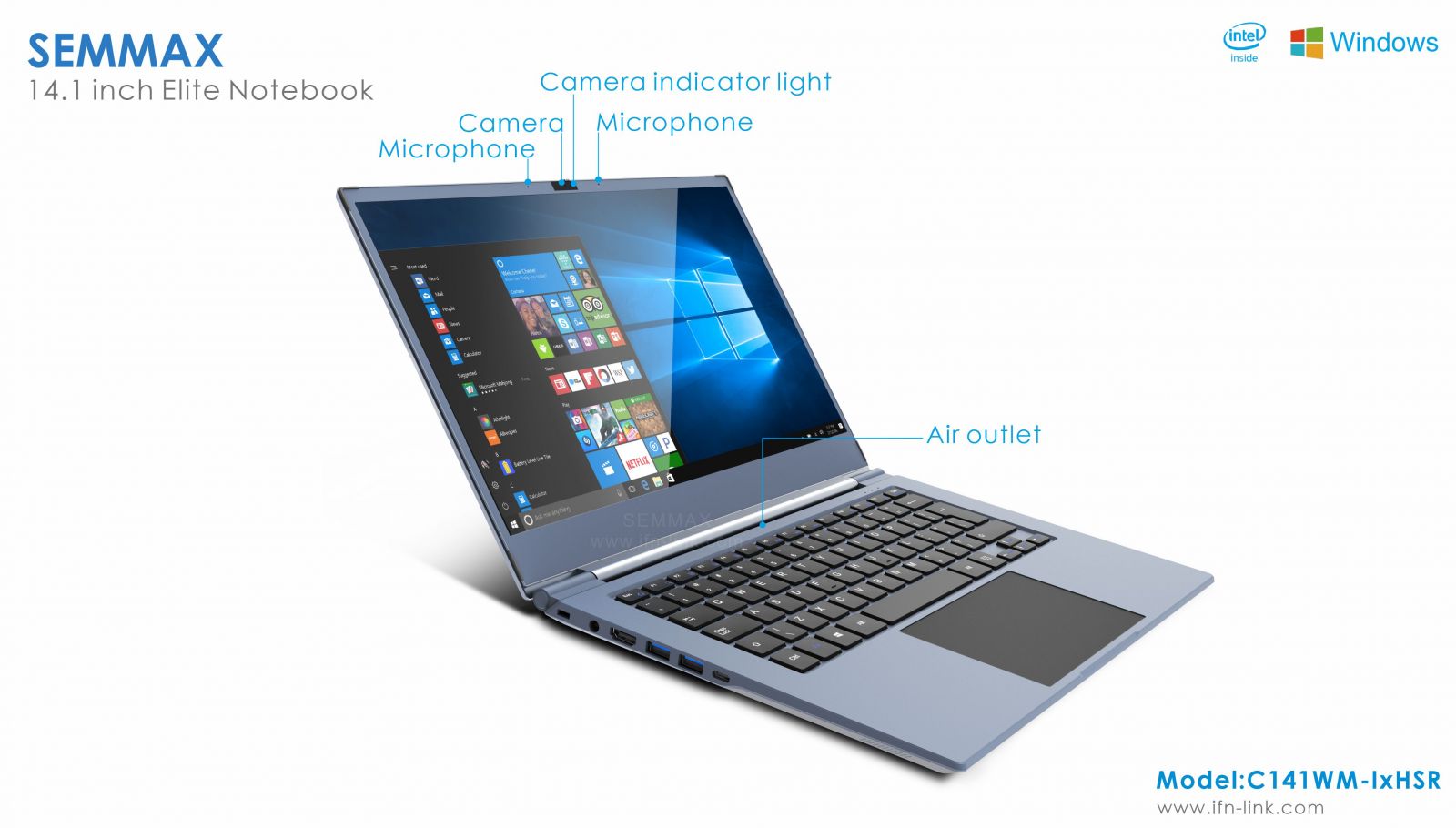

Microphone

n   Default: 2 digital mic (One in Camera)

n   Support Windows 10 Cortana compliance.

Camera

n   Front Camera1M FF W/Blue LED

n   Digital MIC*2 array

n   Cortana support on Windows 10

n   USB 2.0 interface

n   Resolution support 1M  HD 720P(1280x720169) motion image

OS

n   Windows 10 (64bit)

n   WHLK LOGO

System BIOS

AMI

n   Support ACPI 5.0

n   Support external USB flash memory card boot up.

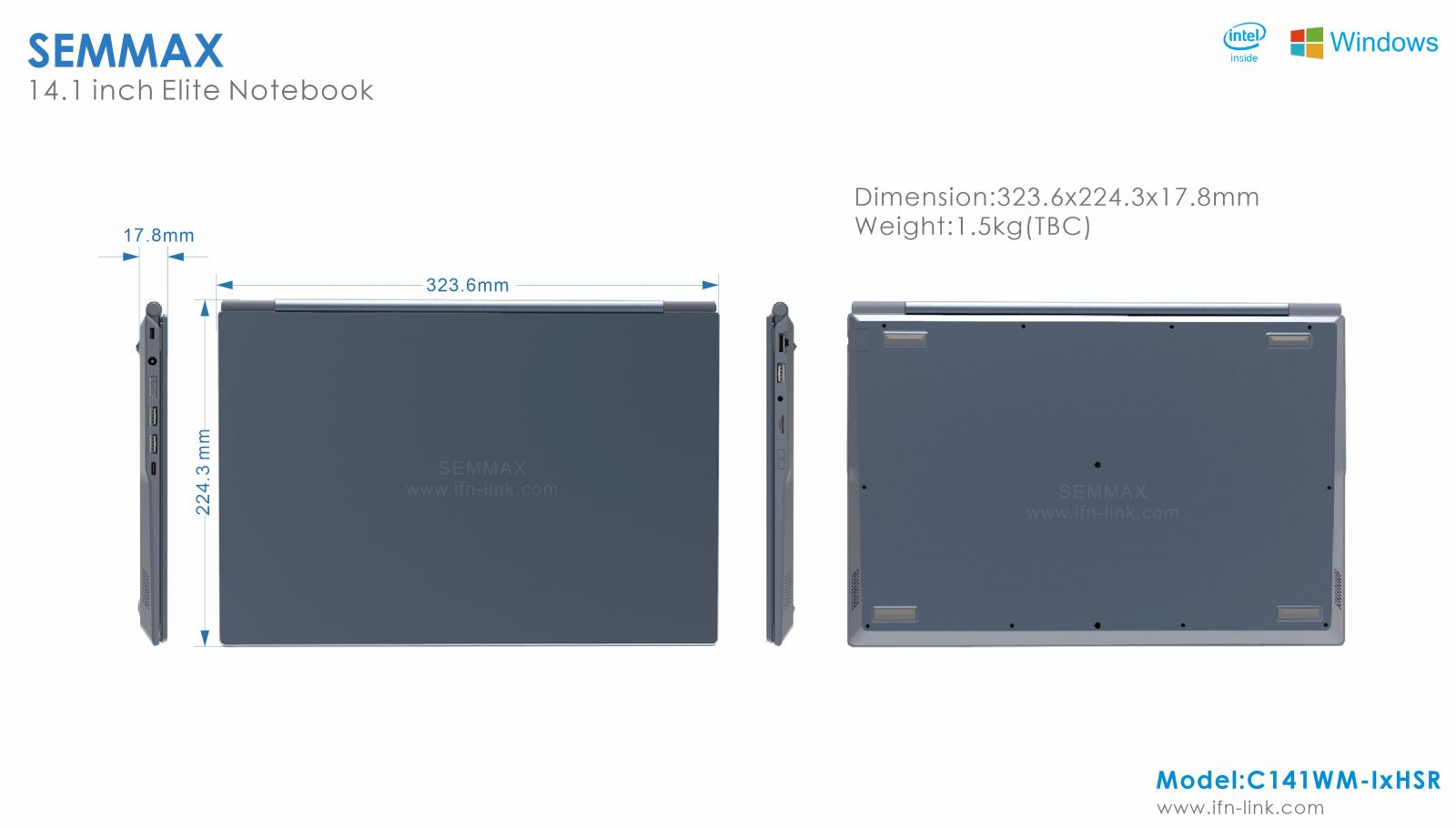

Measurements

n   Dimension:323.6*224.3*17.8mm

n   Weight:1.5kg (TBC)

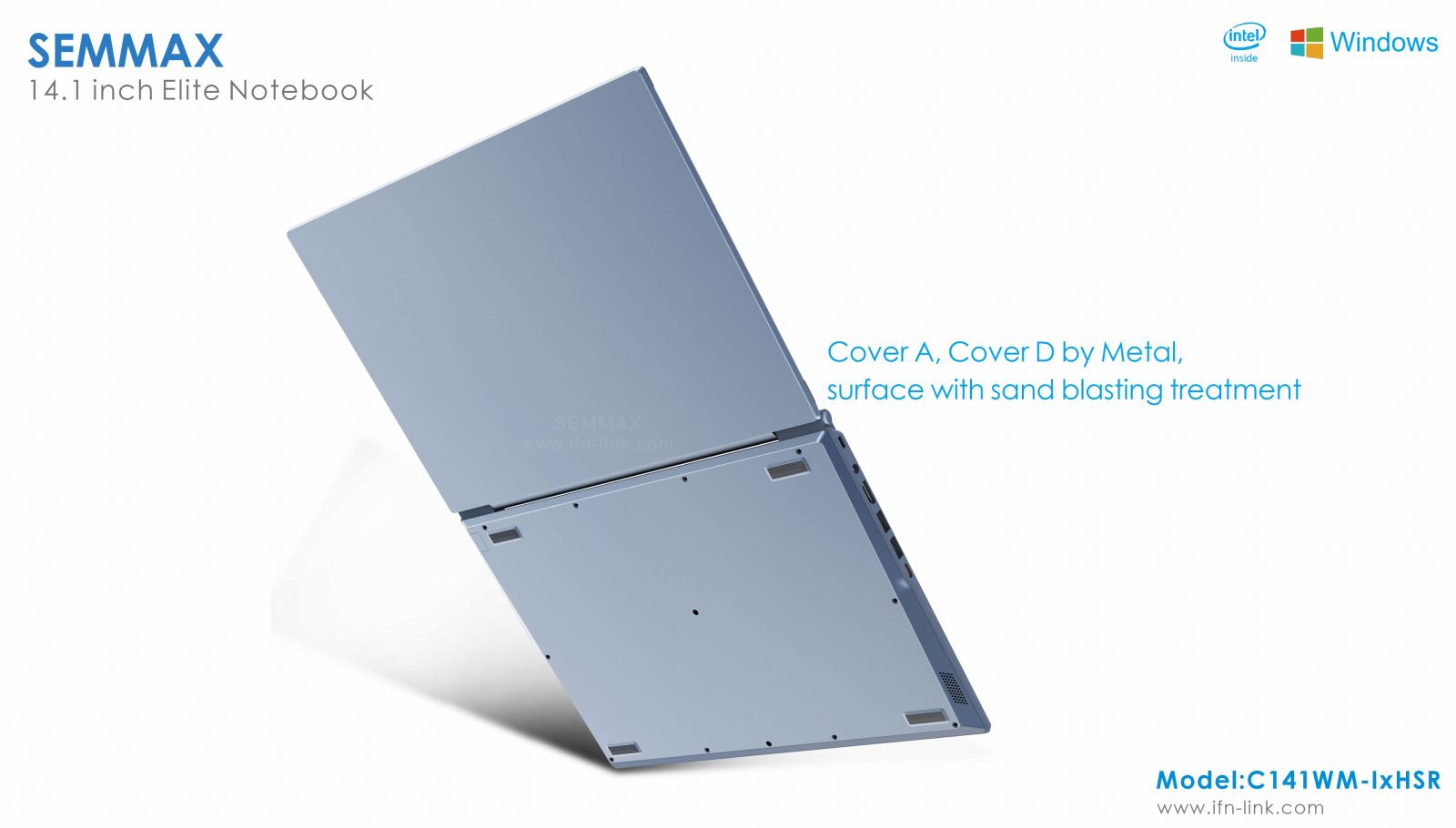

n   AD metalBC plastic

Battery Life

n   Battery Life : 12-15 hour with Tablet Mark 2017 (With SSD SKU)(TBC)

***Base on 14.1” LCD and defined brightness, Wi-Fi on, and camera disabled. Actual battery life may vary based on product settings, usage patterns and environmental conditions.

Certification

EMC

n   FCC/CE

RF

n   CE (Wifi only for EuropeLTE by request)

n   FCC(LTE by request)

Safety&

Environment

n   CB

n   UL (by request)

n   WEEE(Declaration)

n   RoHS (Declaration)

Design Ready

n   Energy Star Compliance 8.0

n   Erp 6

n   CEC

Validation

dTPM2.0

SLB 9670

<Optional>

n   Meeting IntelTXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification

n   SPI interface

Validation

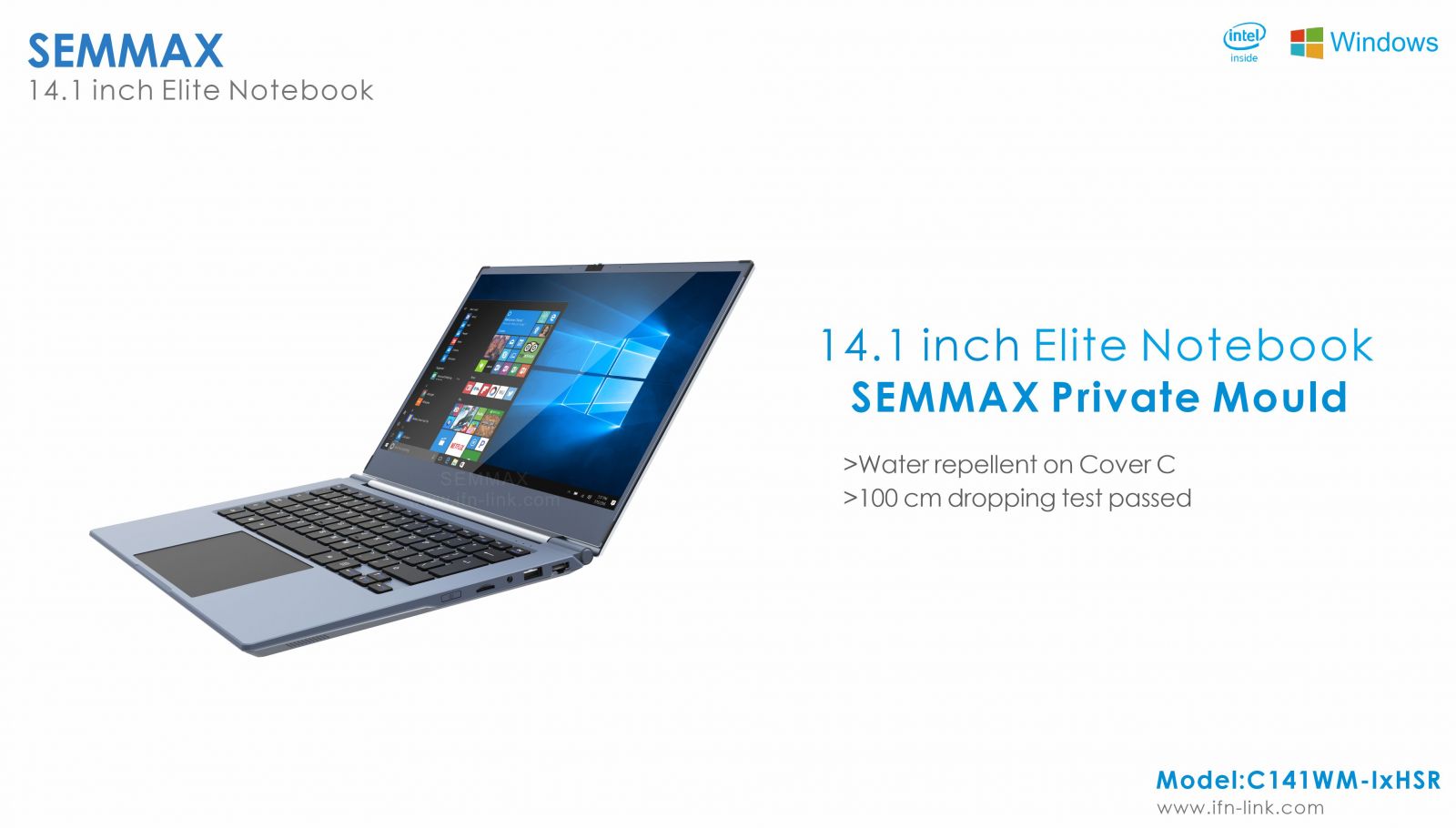

n   Water repellent on C cover , including Keyboard and touch pad (500CC waterproof)

n   Dropping 100cm.

n   MIL-STS-810G

Fingerprint

<Optional>

n   Touch pad

n   SPI interface

n   Windows Hello supported

iKES
<Optional>

n   Education Software (not support in Win10 S mode)
